CCD-BASED DIGITAL
RADIOLOGY DETECTORS
- LOW TOTAL COST OF OWNERSHIP
-
EXCELLENT CUSTOMIZTION AND
INTEGRATION SERVICES FOR OEMS -
ADVANCED DESIGN WITH NO MIRROR
AND NO ACTIVE COOLING SYSTEM

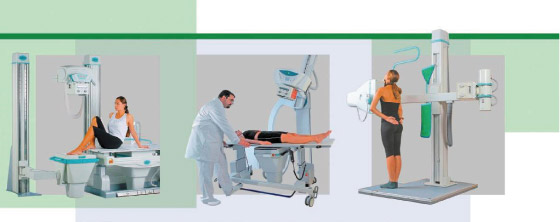

DIRA KRC Detectors are used in wide range of diagnostic systems. from simple wall stands to comples two detectors system.
DIRAŽ Profile
DIRAŽ is the registered trademark for highly acclaimed family of Digital Radiology equipment.
The DIRAŽ Productline is offered worldwide in multiple Diagnostic Imaging Configurations such as high level Medical Radiographic and Dynamic Fluoroscopic imaging formats. DIRAŽ is also customized for specialized Veterinarian, Chiropratic and industrial applications.
The OEM product line consists of leading edge CCD DR Detectors, CMOS Dynamic Flat Panel Detectors, mechenical components and assembelies that integrate together to create peerless X-Ray Systems.
DIRAŽ product development and manifacturing is based in the following key principles:
- Close dialog and interaction with clients to identify current and prospective market demands that might be implemented into product developemt in no time
- Sustainable investment in R&D to create uniques and exclusive technological solutions for execllent performance and efficiency of all DIRAŽ products
- Ultimate level of reliability and safety guaranteed by international quality management systems complliance, including ISO 13485:2003, ISO9001:2008,EC92/43, CE 0120, IEC601, US FDA(pending), Chinese SFDA(pending)
- Supply of DIRAŽ products sccompanied with comprehensive range of related services for increase customer benefit

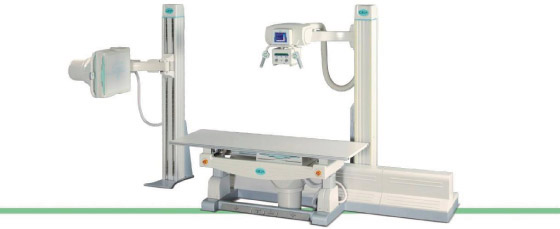

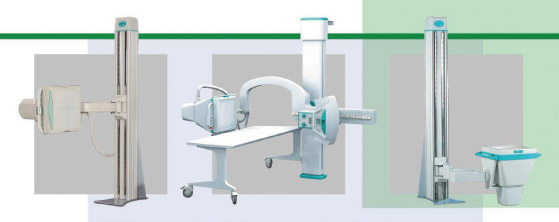

DIRA KRC Detectors are could be easily integrated and fastened with various types of mechanical constructions
DIRAŽ DRC Detector Description
An X-Tay detector is the core of any Diagnostic Imaging system. The principle of DIRAŽ KRC detectors is Cjarge Coupled Device(CCD) techology combined with unique no mirror and noo active cooling system construction.
This solution significantly increases reliability of detector together with quality of image Minimum required maintenance to the customer results in low system's total cost of ownership.
To expand variety of applications DIRAŽ KRC Detectors can be used both in radiographic and fluoroscopic mode.
Products Benefits and Features
Benefits :
- Wide range of examinations possible
- High fault tolerance
- Increased uptime for system operation
- Improved DQE due to advanced design solution
- Complimentary software package
- Integration flexibility for private labeling and custom software/hardware support
- Comprehensive range of technical and commercial services
Features :
- Fluroscopy mode with up to 3 frams per second
- Uniques hig-apeture optical system
- Absence of mirror in detectors' construction to reduce light transmission losses
- Highly advanced firmware for dark current compensation makes is possible to build detectors without active cooling systems and moving part
- Automated variation of resolution and sensitivity throughout a wide latitude
- Easy and minimal maintenance by customer's engineers
- Advanced image processing algorithms
- Special CCD matrix shielding

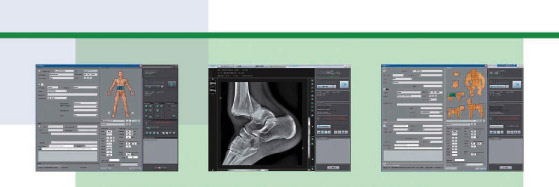

User-friendly and powerful DIRAŽ Software has medical and veterinary versions with multi-languages support
Models Line and Options
| DIRAŽKRC 5A | DIRAŽKRC 9 | DIRAŽKRC 9C | DIRAŽKRC 16 | DIRAŽKRC 16C | DIRAŽKRC 9N | DIRAŽKRC 9NC | DIRAŽKRC 16N | DIRAŽKRC 16NC | |
| Active Pixels | 2.5K X 2 K | 3K X 3 K | 3K X 3 K | 4K X 4 K | 4K X 4 K | 3K X 3 K | 3K X 3 K | 4K X 4 K | 4K X 4 K |
| Active image size, mm | 390 X 320 | 400 X 400 | 430 X 430 | ||||||
| Detector housing size, mm | 525 X 480 X 698 | 586 X 550 X 688 | |||||||
| Spetial resolution, Ip/mm | 3.4 | 4.1 | 4.3 | 4.6 | 5.0 | 4.0 | 4.3 | 4.6 | 4.8 |
| Type of scintillating | Gadox | Gadox | Csl | Gadox | Csl | Gadox | Csl | Gadox | Csl |
| Gray Scale | 16 bit | ||||||||
| Fluoroscopy mode, Hz | 3 bit | 2 | |||||||
Services
Comprehensive range of technical and commercial services abailable for customers :
- Full spectrum of product training courses ( harware, software, integration etc)
- Various types of customizations to meet customer's requirement including specific mechnics, electronics and software development
- Consultancy and technical assistance in end-user radiology system design projects
- Multi-level technical support including on site services
Software
Complimentary software package includes :
- DIRAŽ dtector drivers
- Image processing software
- X-Ray equipment contrl
- DICOM libraries
- Comprehsive end-user software
Software highlights :
- Rich functionality, including PACS and DICOM features
- Advanced antomically programmed radiography
- Compability and direct interfacing with major X-Ray equipment manufacturers
- Multi-language support
- Private label support (customization for client's brand and style)
