S P E C I F I C A T I O N S	1 Tube / 2 Tubes (3 Tubes optional)
CONSTANT POTENTIAL POWER RATINGS	32 kW	40 kW	50 kW	64 kW	80 kW

RADIOGRAPHIC KVP RANGE IN 1 KVP STEPS ACCURACY	40 - 125/150 ± (3%+1 KV)	40 - 125/150 ± (3%+1 KV)	40 - 125/150 ± (3%+1 KV)	40 - 125/150 ± (3%+1 KV)	40 - 125/150 ± (3%+1 KV)
MA RANGE & STATIONS ACCURACY	10, 12.5, 16, 20, 25, 32, 40,50, 64, 80, 100, 125, 160,200, 250, 320,400 ± (4%+1 MA)	10, 12.5, 16, 20, 25, 32, 40,50, 64, 80, 100, 125, 160,200, 250, 320,400 500 ± (4%+1 MA)	10, 12.5, 16, 20, 25, 32, 40,50, 64, 80, 100, 125, 160,200, 250, 320,400 500,640 ± (4%+1 MA)	10, 12.5, 16, 20, 25, 32, 40,50, 64, 80, 100, 125, 160,200, 250, 320,400 500,640 ± (4%+1 MA)	10, 12.5, 16, 20, 25, 32, 40,50, 64, 80, 100, 125, 160,200, 250, 320,400 500,640,800,1000(2) ± (4%+1 MA)
POWER OUTPUT	400 mA @80 kVp 320 mA @ 100 kVp 250 mA @ 128 kVp 200 mA @ 150 kVp	500 mA @ 80 kVp 400 mA @ 100 kVp 320 mA @ 125 kVp 250 mA @ 150 kVp	640 mA @ 78 kVp 500 mA @ 100 kVp 400 mA @ 125 kVp 320 mA @ 150 kVp	640 mA @ 100 kVp 500 mA @ 125 kVp 400 mA @ 150 kVp	1000 mA @ 80 kVp 800 mA @ 100 kVp 640 mA @ 125 kVp 500 mA @ 150 kVp
EXPOSURE TIME RANGE ACCURACY	0.001 - 10 seconds ±(2%+0.1 ms)	0.001 - 10 seconds ±(2%+0.1 ms)	0.001 - 10 seconds ±(2%+0.1 ms)	0.001 - 10 seconds ±(2%+0.1 ms)	0.001 - 10 seconds ±(1%+0.1 ms)
MAS RANGE (*)	0.1 - 500 MAS (1)	0.1 - 500 MAS (1)	0.1 - 500 MAS (1)	0.1 - 500 MAS (1)	0.1 - 500 MAS (1)
HIGH VOLTAGE RIPPLE (TYP)	<1 KVP @ 100 KVP	<1 kVp @ 100 kVp	<1 kVp @ 100 kVp	<1 kVp @ 100 kVp	<1 kVp @ 100 kVp
AUTOMATIC EXPOSURE CONTROL	Optional	Optional	Optional	Optional	Optional
Tomo	Optional	Optional	Optional	Optional	Optional
BUCKYS (2 UNITS STANDARD)	Optional up to 4	Optional up to 4	Optional up to 4	Optional up to 4	Optional up to 4
ANATOMICAL PROGRAMMING	Optional	Optional	Optional	Optional	Optional
INTEGRATED HIGH SPEED STARTER	Optional	Optional	Optional	Optional	Optional

FLUOROSCOPIC KVP RANGE IN 1 KVP STEPS ACCURACY	40 - 120 ±(3%+1 KV)	40 - 120 ±(3%+1 KV)	40 - 120 ±(3%+1 KV)	40 - 120 ±(3%+1 KV)	40 - 120 ±(3%+1 KV)
FLUOROSCOPY FIXED PPS VARIBLE PPS (Optional)	at 50Hzat 60 Hz 50 PPS60 PPS 1, 2, 3, 6,1, 2, 4, 8, 12, 25, 3015, 30, 60	at 50Hzat 60 Hz 50 PPS60 PPS 1, 2, 3, 6,1, 2, 4, 8, 12, 25, 3015, 30, 60	at 50Hzat 60 Hz 50 PPS60 PPS 1, 2, 3, 6,1, 2, 4, 8, 12, 25, 3015, 30, 60	at 50Hzat 60 Hz 50 PPS60 PPS 1, 2, 3, 6,1, 2, 4, 8, 12, 25, 3015, 30, 60	at 50Hzat 60 Hz 50 PPS60 PPS 1, 2, 3, 6,1, 2, 4, 8, 12, 25, 3015, 30, 60
AUTOMATIC BRIGHTNESS CONTROL	Optional	Optional	Optional	Optional	Optional

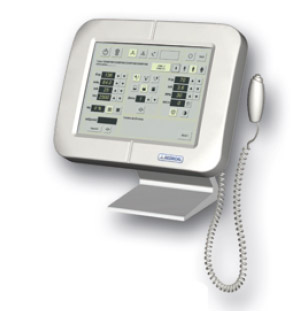

3/2 POINT OPERATION CONSOLE	3 P. Standard / 2 P. Optional	3 P. Standard / 2 P. Optional	3 P. Standard / 2 P. Optional	3 P. Standard / 2 P. Optional	3 P. Standard / 2 P. Optional
DIGITAL IMAGE SYSTEM INTERFACE	Optional	Optional	Optional	Optional	Optional
LINE VOLTAGE RANGE (VAC) AND PHASES	230/240/400/415/440/480 Single Phase/Three phase	230/240/400/415/440/480 Single Phase/Three phase	230/240/400/415/440/480 Single Phase/Three phase	400/415/440/480 Three phase	400/415/440/480 Three phase
AUTOMATIC LINE COMPENSATION	± 10%	± 10%	± 10%	± 10%	± 10%
MINIMUM POWER LINE REQUIREMENTS ACCORDING TO IEC 601-2-7

(1) 640 mAs - on request (2) 1,000 mA @ 80 kVp avaible on request

Specifications subject to change without prior notice
